Description

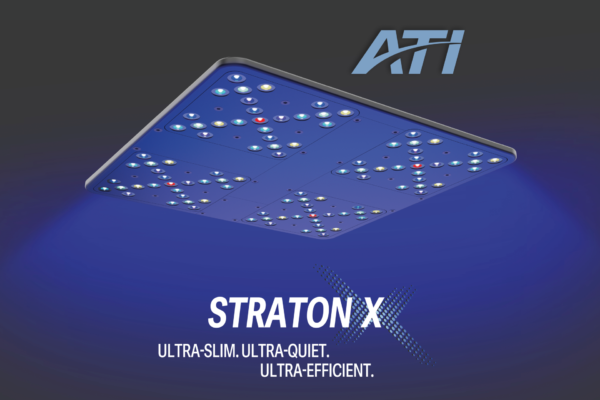

ATI Straton X  – Ultra-Slim, Ultra-Quiet & Ultra-Efficient

Experience revolutionary G3 performance in a minimalist design. The passively cooled ATI Straton X, only 9mm thin, sets new standards in LED lighting for saltwater aquariums, uncompromisingly combining the most efficient technologies and finest materials in a single light – completely fanless, completely silent.

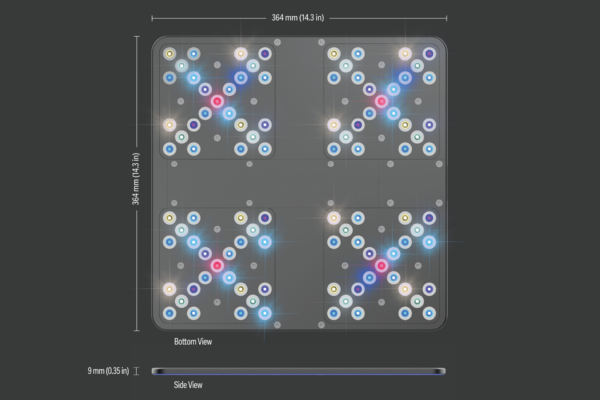

Ultra-slim / Ultra-flat: With a height of only 9 mm, the Straton X is probably the flattest high-performance LED aquarium light on the market. Even slimmer and lighter than its predecessors, it blends in seamlessly. It blends discreetly into any aquarium design.

Full Aluminum Design: The Straton X impresses with its precisely manufactured aluminum housing. This not only ensures an elegant appearance but also high stability and durability. At the same time, the aluminum allows for efficient heat dissipation – a crucial advantage for the lifespan and performance of modern LEDs. The Straton X is a true premium product made from high-quality materials, setting new standards in workmanship and design.

Noise-free: Conventional LED lights require fans for cooling – these generate noise, increase the overall height, and are subject to wear and tear. The Straton X completely eliminates this: Modern high-power LEDs and an efficient aluminum heat sink make fans and their maintenance unnecessary – for absolutely silent operation.

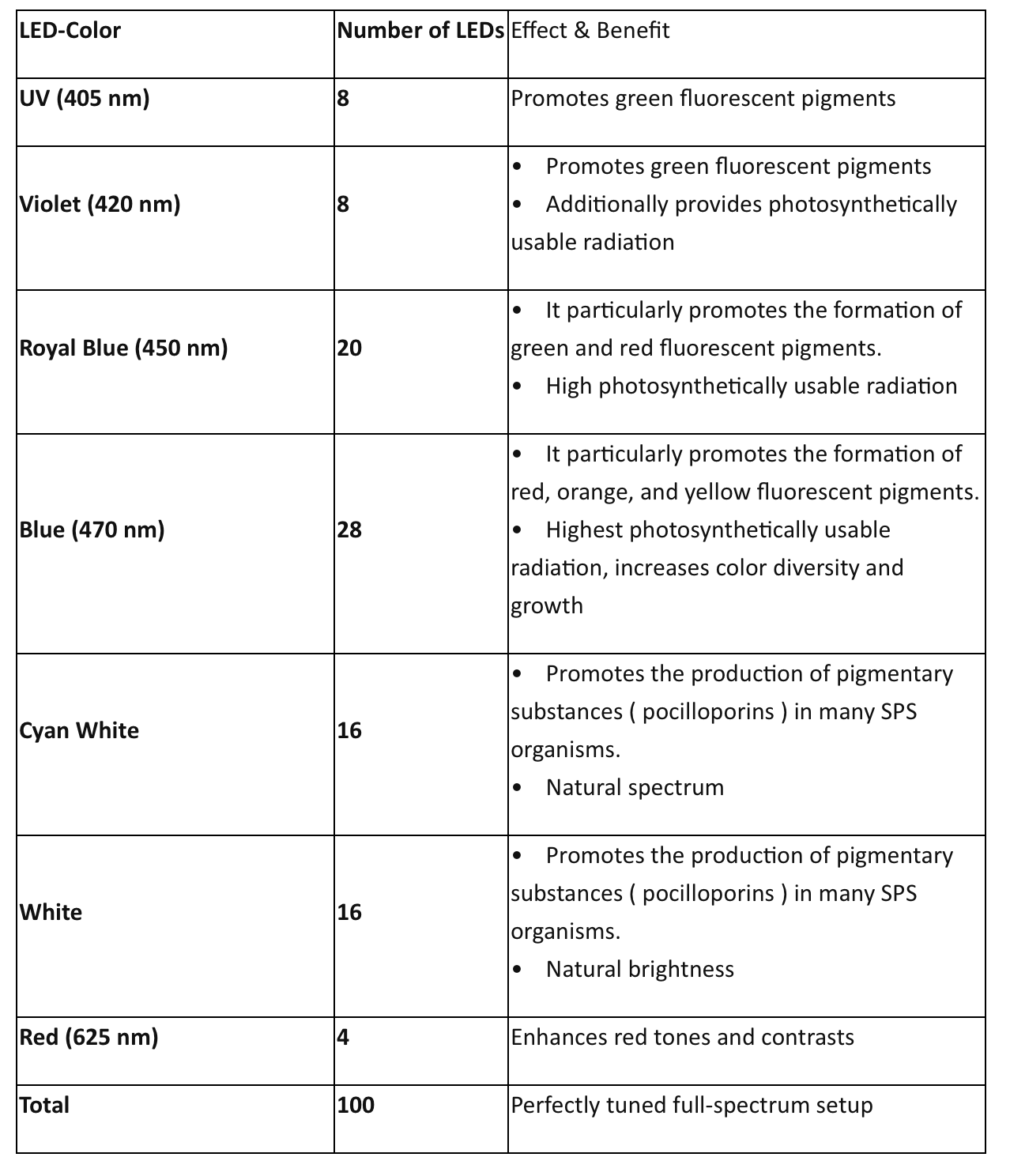

Anti-glare / glare-free: Many LED aquarium lights cause glare due to uncontrolled light scattering – the Straton X takes a different approach. Each of the 100 LEDs uses specially developed high-performance reflectors, which are flush-mounted in the light fixture. They direct the light precisely into the aquarium, ensuring it goes only where it’s needed – for maximum efficiency and a pleasant, glare-free aquarium experience.

Next-level performance that is measurable and convincing

Instead of promises, we rely on facts: We have introduced meaningful and practical key performance indicators that clearly demonstrate the performance of the Straton X – ideal for planning the optimal light level for aquariums and coral farms, or for comparisons with other LED systems on the market. Thanks to integrated PAR and current measurement, the performance values are always transparent and traceable via the app.

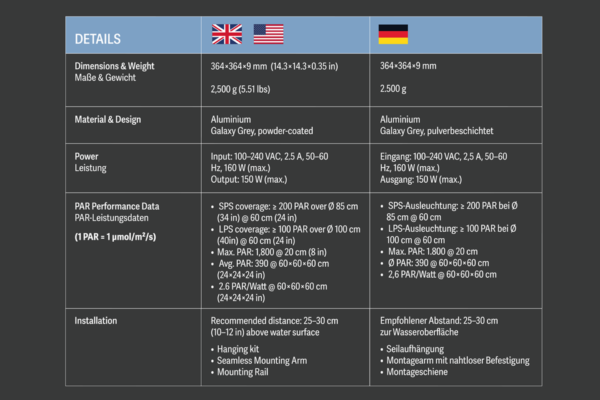

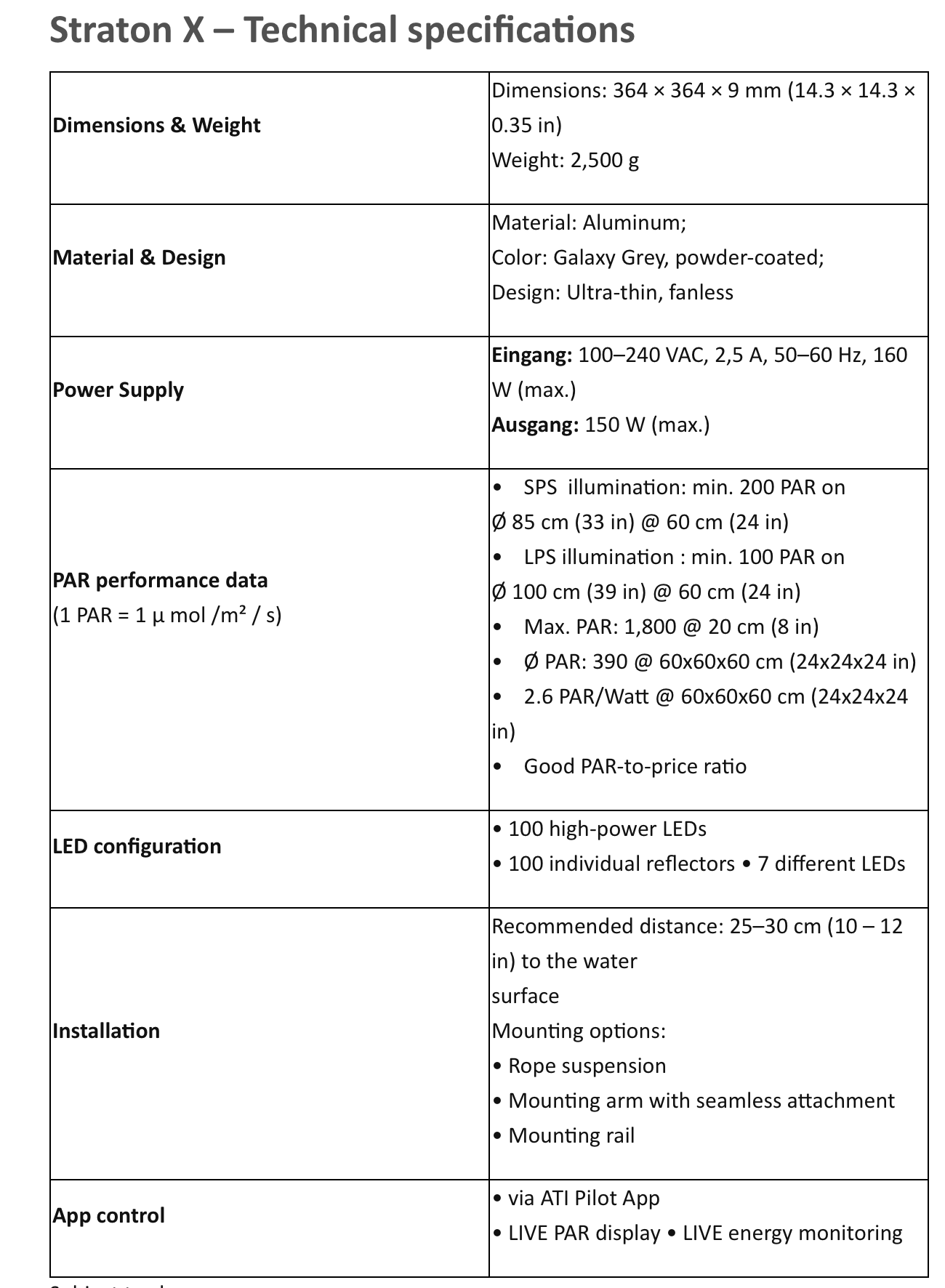

Key figures at a glance:

• Absolute Performance – With 1,800 PAR at a distance of 20cm (8 in), the Straton X delivers light output comparable to direct tropical sunlight. This is made possible by the use of the latest G3 technology, which achieves significantly higher output compared to the previous generation .
• Average area performance: At a practical distance of 60cm (24 in) the Straton X achieves in an area of 60 × 60 cm (24×24 in) an impressive average PAR of 390 – and that with just 150 W power consumption.
• Relative performance: The area output results in an excellent relative performance of 2.6 PAR/Watt . This makes the Straton X one of the most efficient LED reef lights in its class.

Illumination area and PAR distribution:

The Straton X was designed for exceptionally broad and even coral illumination and PAR distribution. To illustrate this performance transparently and practically, we have defined two key performance indicators – each measured at a distance of 60cm (24 in) to the light, so that the middle area of the aquarium (approx. 30 – 40 cm below the water surface) is also covered:

• SPS 200 area : A PAR value of at least 200 µmol /m² / s is considered necessary for keeping demanding SPS corals – the Straton X achieves this value up to a diameter of 85 cm (33 in) , which corresponds to an area of 0.567 m² (6 sq ft).
• LPS 100 Area : For LPS corals or mixed tanks, a PAR value of 100  µmol /m² / s or higher is sufficient. The Straton X delivers this value on an area of 100 cm (39 in) diameter , corresponding to 0.785 m² (8.5 sq ft).

These figures impressively demonstrate how efficient the Straton X is. With only 150W maximum power output it enables large-area lighting for various aquarium types.

• PAR-to-price ratio: Simply comparing wattage in relation to the purchase price is not very informative. What matters is how much usable light is produced per euro invested. Our tests show: The Straton X offers an outstanding PAR-to-price ratio and is among the very best.

Performance Summary: More light. Less consumption. Maximum control.

The Straton X produces up to twice as much usable light as many other LED systems with the same power consumption. This means: less energy consumption, lower operating costs, and impressive light output. This saves energy, protects the environment and your wallet, and allows your corals to visibly grow.

ATI Reef Pilot App: Intelligent control and full control: The Straton X can be conveniently controlled via smartphone – with the new ATI Reef Pilot App for iOS and Android.

Your advantages at a glance:

• Easily program individual light gradients and spectra.
• Smooth transitions & precise intensity control
• Adopt settings from leading coral farmers (templates)
• Individual or group control of all lights
• LIVE ENERGY: Monitor electricity consumption in real time
• LIVE PAR: Display PAR values live at different water depths

Made in Germany by Reef Enthusiasts: For over 25 years, ATI has stood for innovative aquarium lighting technology. With the Straton X, we consistently rely on German precision: From milling to circuit board assembly – every light is manufactured entirely in Germany.

Milled from solid material, manufactured to the highest standards – this is how we guarantee maximum quality and durability Made in Germany.

What’s in the box:
•    ATI Straton X
•    Power Supply

Mounting (Hanging Kit or Mounting Arm) need to be purchased separately.
