Description

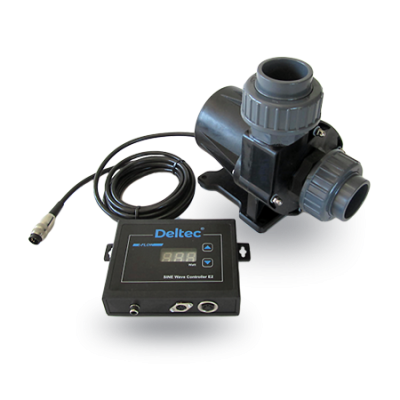

Deltec E-flow



Deltec’s new flag ship series of true sine wave pumps driven by  brushless motors. With the included controller you can set power consumption and performance via a digital wattage display.

The pump can either be installed either externally or submerged providing a high flow rate and pressure at low power consumption with the benefit that they are almost silent in operation. The range consists of five different models.



Features



Deltec E-Flow Pumps are almost silent in operation due to the all new DC brushless motor. All Deltec E-Flow Pumps are protected by an over load protection circuit and if the impeller becomes blocked the pump is switched off automatically.



Control



All models include a control panel that allows the pump to be adjusted for power output . By using the up and down buttons on the control panel power output in watts can be adjusted electronically in 17 stages(E-Flow 16) down to 20 watts.

If power is lost the pump will restart at its old power setting

Separate multifunction controller will be available to control up to four pumps.

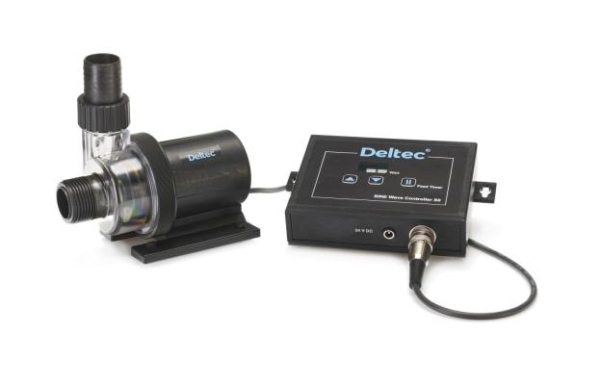

Technical data for model 4

• Volume max at 4000 l/hr
• Water head max: 4.0 meters
• Performance selection: 2 Watt stages
• Voltage: 24v
• Weight: 0.6 kg
• Pump dimensions: 180mm x 80mm x 140 mm (LxWxH)
• Controller: SWC E0

Connections:

• Inlet/Suction: 27 mm
• Outlet/Pressure: 27 mm

Power Consumption:

• 2-30W

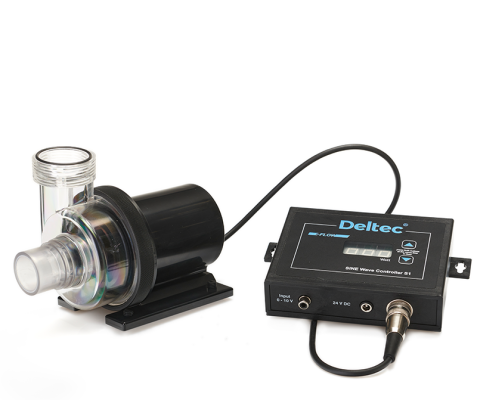

Technical data for model 8

• Volume max at 8000 l/hr
• Water head max: 4.0 meters
• Performance selection: 5 Watt stages
• Voltage: 24v
• Weight: 1.1 kg
• Pump dimensions: 186mm x 100mm x 152 mm (LxWxH)
• Controller: SWC E1

Connections:

• Inlet/Suction: 32 mm
• Outlet/Pressure: 32 mm

Power Consumption:

• 5-50W



Technical data for model 10

• Volume max at 1.1 meters – 9000 l/hr

• Water head max – 6.0 meters
• Performance selection – 7 stages

• Voltage  – 230/240v

• Weight – 3.5 kg

• Pump dimensions – 195 x 132 x 212 mm (l/w/h)

• Controller dimensions – 190 x 215 x 65 mm (l /w / h)



Connections

• Inlet/Suction – 40 mm
• Outlet/Pressure – 32 mm



Power Consumption

• 20-80W





Technical data For model 12

• Volume max at 1.1 meters – 11,400 l/hr

• Water head max – 8.0 meters

• Performance selection – 12 stages

• Voltage  – 230/240v

• Weight – 3.6 kg

• Pump dimensions – 200 x 135 x 214 mm (l/w/h)

• Controller dimensions – 190 x 215 x 65 mm (l /w / h)



Connections

• Inlet/Suction – 40 mm
• Outlet/Pressure – 40 mm



Power Consumption

• 20-130W





Technical data for model 16

• Volume max at 1.1 meters – 14,000 l/hr

• Water head max – 9.0 meters

• Performance selection – 17 stages

• Voltage  – 230/240v

• Weight – 3.9 kg

• Pump dimensions – 230 x 135 x 214 (l/w/h)

• Controller dimensions – 190 x 215 x 65 mm (l /w / h)



Connections

• Inlet/Suction – 50 mm
• Outlet/Pressure – 40 mm



Power Consumption

• 20-180W
